Slider Widget
Add sliders in Blup to enable users to select values within a specified range for various app features.
Last updated
Add sliders in Blup to enable users to select values within a specified range for various app features.
Last updated
Slider widget is used to allow users to select a value from a range by dragging a thumb along a track. It's commonly used for selecting a value within a range, such as volume control or brightness adjustment.
To utilize an Slider in your Flutter UI, adhere to these steps:

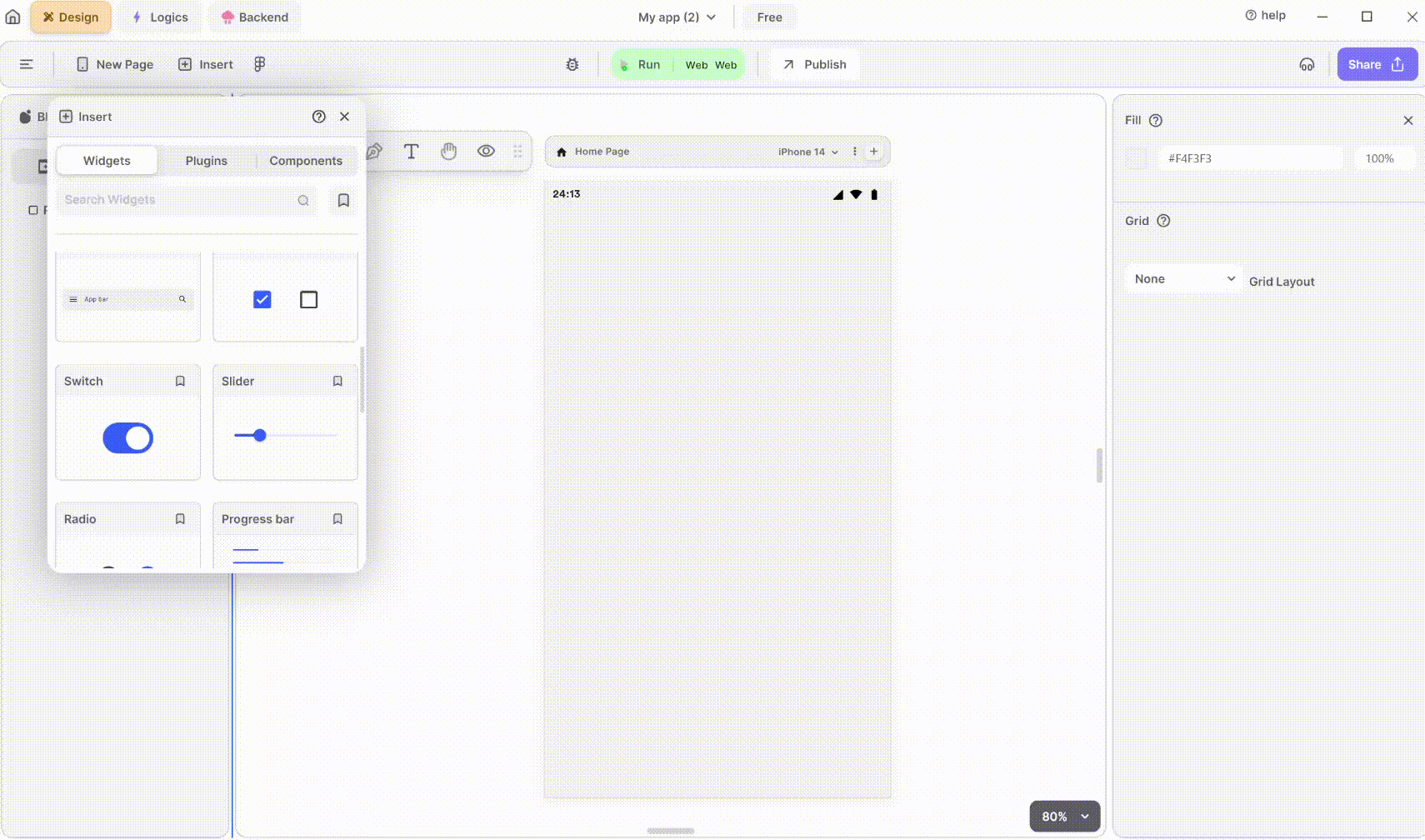

1. Drag the Slider widget from the Insert menu and drop it into your desired location within your UI.
2. Customize the appearance and behavior of the Slider by adjusting its properties in the editing section on the right.
| Component | Description |
|---|---|
Align Icons | Click icons or use shortcut keys to align Slider Widget. For example, click "Align Left" or use Ctrl+Shift+Left to left-align Slider Widget. |
Postitions | Set Slider Widget positions on the X and Y axis of the mobile canvas. |
Margin | Adjust Slider Widget margin from top, bottom, left, or right by specifying margin values. |
Slider value | Set the slider value to determine the range shown in the slider according to your needs. |
Label | Assign a label text to the slider according to your needs. |
Min & Max | Set the minimum and maximum range in the slider to represent your data progress. |
Divisions | Set the number of divisions you want to show in your slider. |
Slider Color | This will give the color to your slider according to your needs. |
Slider Background Color | This will give the background color to your slider according to your needs. |
Visible | By checking the checkbox, the entire selected slider widget will be hidden. |
If you have any ideas to make Blup better you can share them through our Discord community channel
