Multi choice dialog Widget
Enable multiple-choice selections in Blup with this versatile widget for enhanced user input options.
Last updated
Enable multiple-choice selections in Blup with this versatile widget for enhanced user input options.
Last updated
A multi-choice widget allows users to select multiple options from a list. It enhances user interaction by providing flexibility and efficiency in data input.
Integrating a Multi Choice Dialog into your UI provides users with a convenient way to select multiple options. Follow these steps to utilize it effectively:

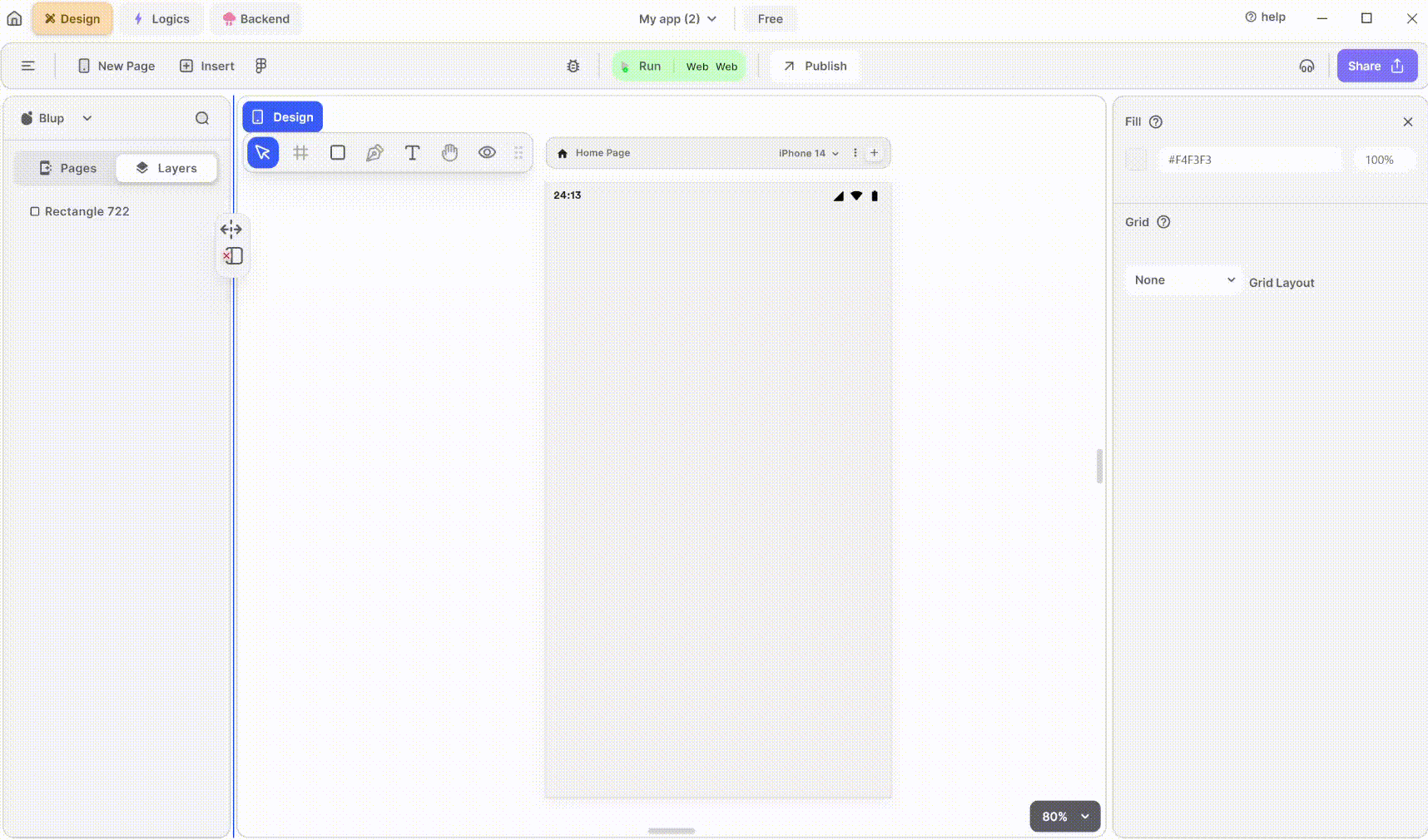

1. Drag the Multi Choice dialog widget from the Insert menu and drop it into your desired location within your UI.
2. Customize the appearance and behavior of the Multi Choice Dialog by adjusting its properties in the editing section on the right.
3. Enable users to select multiple options from the dialog box. You can specify the options available for selection and handle the selected options accordingly in your code.
| Component | Description |
|---|---|
Align Icons | Click icons or use shortcut keys to align Multi Choice Dialog Widget. For example, click "Align Left" or use Ctrl+Shift+Left to left-align Multi Choice Dialog Widget. |
Postitions | Set Multi Choice Dialog Widget positions on the X and Y axis of the mobile canvas. |
Multi-Choice Dialog Widget Size | Specify the width and height of the Multi Choice Dialog Widget by providing values for width (w) and height (h). |
Z rotation | Rotate the Multi Choice Dialog Widget by specifying a rotation value. |
Border Radius | Adjust corner curvature by providing a value to create rounded corners. Individual corner adjustments are available by clicking on each corner. |
Margin | Provide margin to the Multi-Choice Dialog Widget from any of the four directions by specifying the margin value. |
Preview | Clicking on preview allows you to see the preview of the Multi-Choice Dialog Box. |
Title | Set the title of the Multi-Choice Dialog widget from inside. |
Confirm Text | Enter your own confirmation text here when the user confirms the selected item. |
Cencel Text | Provide the cancel text here for closing the dialog box. |
Item Selection | When the user checks the box of "is only one selection allowed," then the user can select only one item from the dialog box. |
Fill | Give the Multi-Choice Dialog widget a color of your choice. |
Border Color | Choose a color to set the Dialog widget border color. Adjust the border color from inside, outside, or center of the Dialog widget by selecting it from the drop-down. |
Shadow | Apply a shadow effect to the Dialog by selecting either a normal or inner shadow type. |
Visible | By checking the checkbox, the entire selected Multi-Choice Dialog widget will be hidden. |
