Switch Widget

Implement toggle switches in Blup for users to easily switch settings and features within your application.

PreviousCheckbox WidgetNextSlider Widget

Last updated 1 year ago

Was this helpful?

Switch widget is used to create a toggle switch that allows users to toggle between two states: on and off. It's commonly used to represent binary options such as enabling/disabling a feature or setting.

To integrate a Switch Widget into your UI, follow these steps:

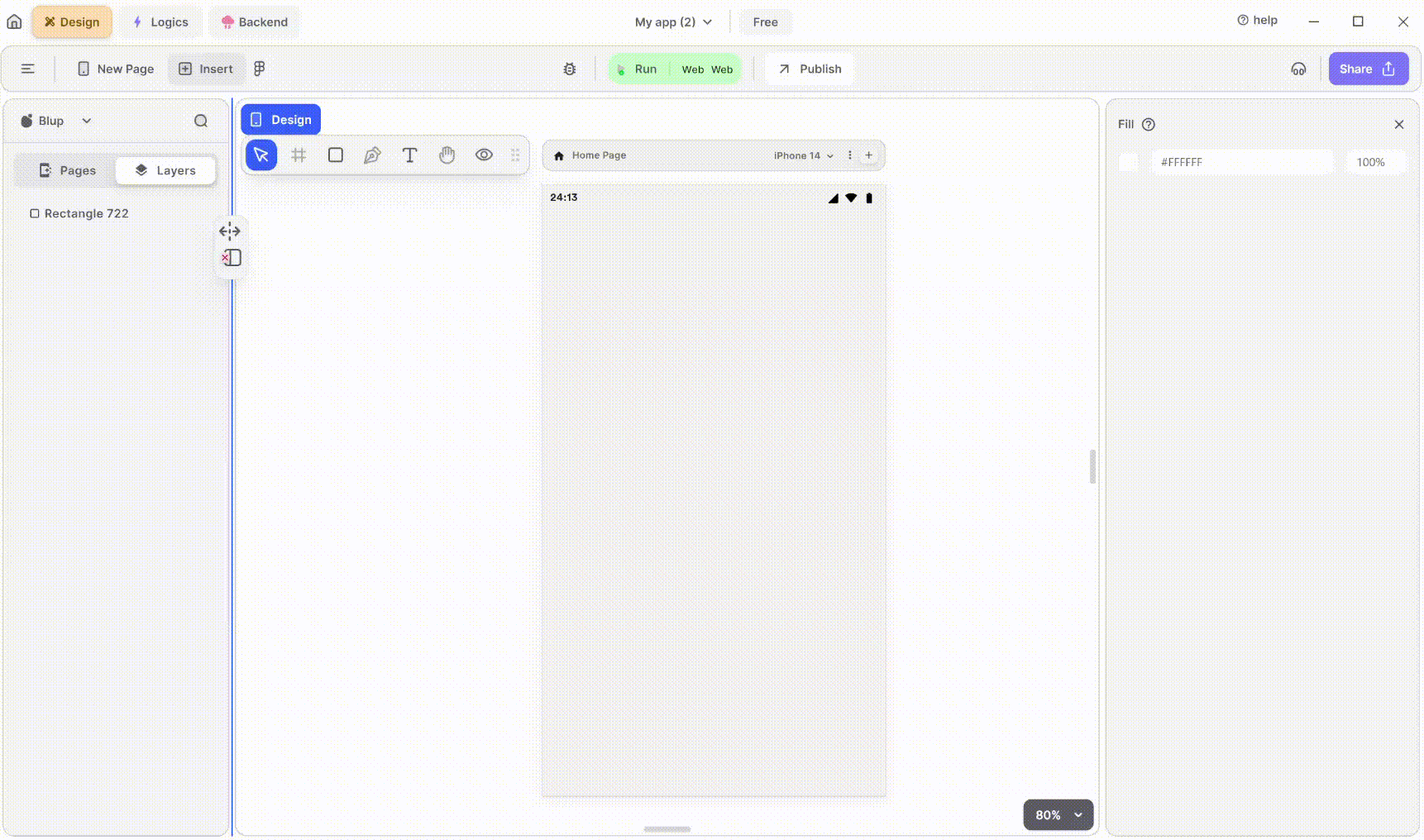

1. Drag the Switch widget from the Insert menu and drop it into your desired location within your UI.

2. Customize the appearance and behavior of the Switch by adjusting its properties in the editing section on the right. You can modify properties such as color, size, and shape to match your UI design. Change the color according to your needs by adjusting the activeColor and inactiveTrackColor properties.

Components of Switch Widget

Component
Description

Align Icons

Click icons or use shortcut keys to align Switch Widget. For example, click "Align Left" or use Ctrl+Shift+Left to left-align Switch Widget.

Postitions

Set Switch Widget positions on the X and Y axis of the mobile canvas.

Margin

Adjust Switch Widget margin from top, bottom, left, or right by specifying margin values.

Swtich value

Make the Switch on and off by marking the checkbox.

Thumb Color

It will give color to the round thumb inside the Switch Widget.

Focus Color

Give it a color according to your need when switch is Focused

Hover Color

Give it a color according to your need when the user hovers a cursor on the Switch; it will change color.

Active Color

This will give the color to your track of Switch when it is active.

Inactive Track Color

This will give the color to your track of Switch when it is inactive.

Inactive Thumb Color

This will give the color to your thumb of Switch when it is inactive.

Visible

By checking the checkbox the entire selected Switch widget will be hidden.
