Appbar Widget
AppBar widget is a fundamental component used to create the top app bar, which typically contains the application's title, navigation icons, action buttons, and other relevant information.
To utilize an AppBar in your UI, adhere to these steps:

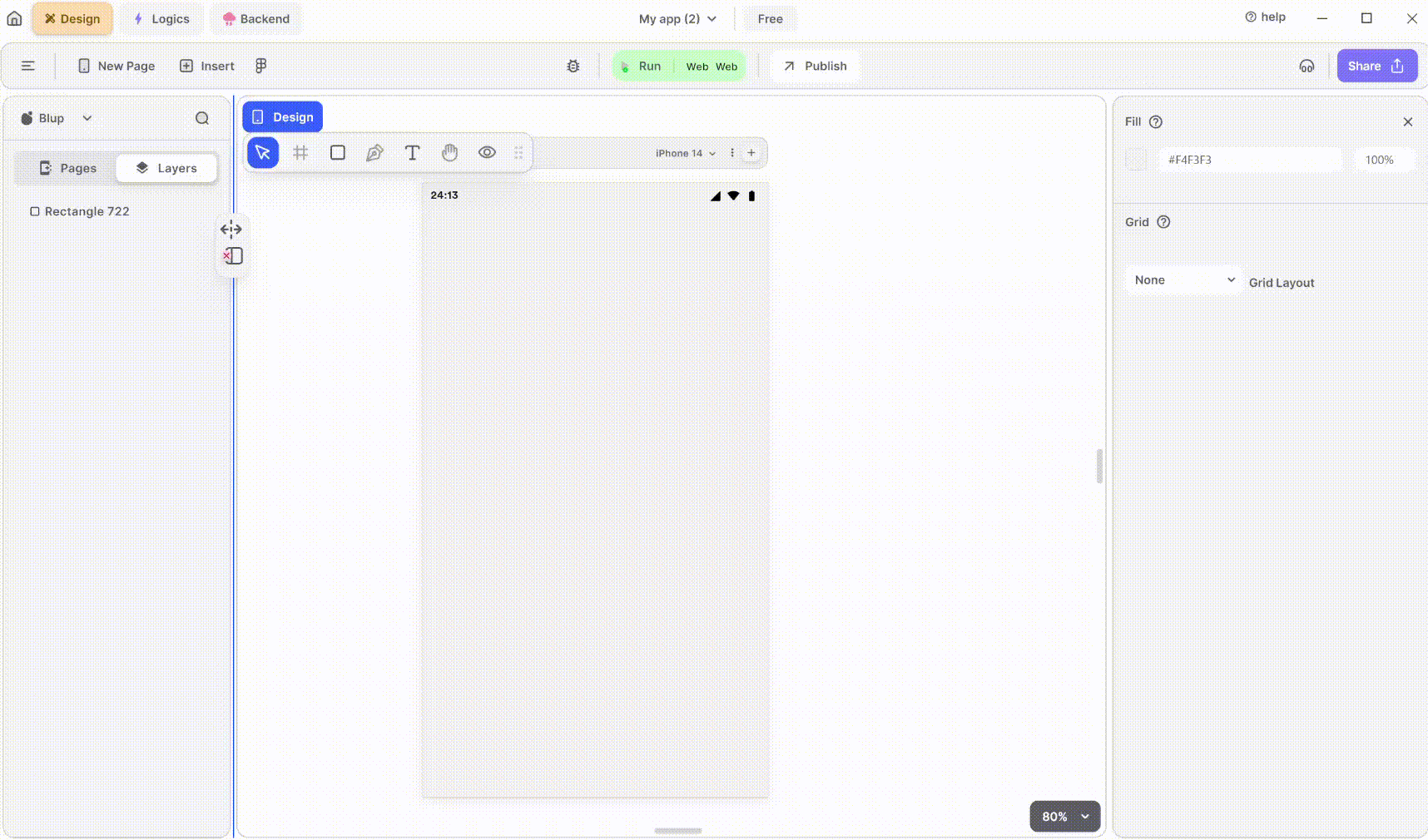

1. Drag the AppBar widget from the Insert menu and drop it into top of the desired Page.
2. Customize the appearance and behavior of the AppBar by adjusting its properties in the editing section on the right.
3. Enhance the AppBar by adding different icons to make your header more visually appealing.
Components of AppBar Widget
| Component | Description |
|---|---|
Align Icons | Click icons or use shortcut keys to align AppBar Widget. For example, click "Align Left" or use Ctrl+Shift+Left to left-align AppBar Widget. |
Postitions | Set AppBar positions on the X and Y axes of the mobile canvas. |
Appbar Size | Specify the width and height of the Appbar widget by providing values for width (W) and height (H). |
Z rotation | Rotate the AppBar by specifying a rotation value. |
Border Radius | Adjust corner curvature by providing a value to create rounded corners. Individual corner adjustments are available by clicking on each corner. |
Margin | Provide margin to the Appbar from any of the four directions by specifying the margin value. |
Color | This section will give Appbar a selected color. |
Shadow Color | This section will give Appbar a shadow color. |
Elevation | Specify the elevation that you want to give to the AppBar. |
Title | Specify the title of the AppBar if you want to make the title centre, or specify the spacing by giving the value. |
Toolbar | Specify the height of the toolbar and opacity by give the value to it. |
Text property | Modify AppBar text directly in the provided field, and changes will reflect on the mobile canvas. |
Font Type | Choose the preferred font type for selected AppBar text. |
Font Style | Select font styles from a dropdown menu. |
Font Size | Define the font size of the selected AppBar text. |
Letter spacing | Specify spacing between letters of the selected AppBar text. |
Line Height | Define the height between lines of AppBar text. |
Left Align | This option aligns the AppBar text from the left. |
Centre Align | This option aligns the AppBar text to the centre. |
Right Align | This option aligns the AppBar text to the right. |
Auto Width | The width of the text will be adjusted automatically depending on the size of the container housing the selected AppBar text. |
Auto heiight | The height of the text will be adjusted automatically depending on the size of the container housing the selected AppBar text. |
Fixed size | The dimensions of the text will remain fixed regardless of the size of the container housing the selected AppBar text. |
Max Line | This property helps you to define the maximum number of lines the selected text can specify for example, if you define the value as 2 then the AppBar text can only take up 2 lines. |
Font color | Change the color of the text using color picker, hex code, or RGB sliders. |
Ellipsis, on text overflow | Show "..." if AppBar text overflows the specified max line limit. |
Selectable Text | Allow users to select AppBar text for toolbar operations by checking this field. |
Visible | By checking the checkbox the entire selected list will be hidden. |
